OF festo Filter
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
OF
Production Capacity:
8000 sets/ month
Delivery Date:
15-45days
Brand Name:
KINETIC
Primary pressure:
1-16bar
Assembly Position:
Vertical ±5°
Means of Transport:
Ocean,Air
Packing:
wooden / carton
Function:
travel kit
Export Area:
Europe/USA/Middle East
Timperature Range:
0~60°C

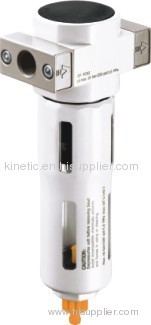

The OF filter with water separator cleans the compressed air of fluid oil
FESTO type
OF Series Air Filter festo type filter air source treatment
The
OF with water separator cleans the compressed air of fluid oil,condensation and dirt particles,
for special application,the standard 40μm filter element may easily be replaced by a 5μm
filter relement.
Specification |
Filter | MINI | MIDI | MAXI |
40μM | Manual Drain | OF-1/8-MINI | OF-1/4-MINI | OF-3/8-MINI | OF-3/8-MIDI | OF-1/2-MIDI | OF-3/4-MIDI | OF-3/4-MAXI | OF-1/8-MAXI |
5μM | OF-1/8-5M-MINI | OF-1/4-5M-MINI | OF-3/8-5M-MINI | OF-1/8-5M-MIDI | OF-1/2-5M-MIDI | OF-3/4-5M-MIDI | OF-3/4-5M-MAXI | OF-1/8-5M-MAXI |
Working Medium | Compressed Air |
Features of Structure | Sintered Filter With Water Spartor |
Mounting Type | Pipe/foot Mounting |
Assembly Position | Vertical±5° |
Connection | G1/8'' | G1/4'' | G3/8'' | G3/8'' | G1/2'' | G3/4'' | G3/4'' | G1'' |
Standard Nominal Flow Rate | OF-… | 1000 | 1200 | 1400 | 2700 | 3000 | 3000 | 5000 | 5300 |
OF-…-5M | 600 | 950 | 1100 | 1800 | 1900 | 1900 | 3200 | 3300 |
Primary Pressure | Manual Drain | 1~16bar |
Grade of Filtration | 40μm/5μm |
Capacity of Condensate Fluid | 22ml |
Timperature Range | 0~60ºC |
Materials Information | Housing:Zinc Die-casting;Filter Bowl:PC;Meta Bowl Guard:Aluminium Allory;Sealing:Nbr |
